Web Guides with Selectively Protruding Fins
Published: 7 April 2026
A single roller with adjustable fins can replace large media steering mechanisms in many applications. It is an innovative new method to reduce scrap, rework, downtime, and damage in media web and conveying equipment sets.
This invention provides an actively correcting web‑guiding roller that has already been validated through a working prototype, uses standard manufacturing methods, integrates easily into existing systems, and offers measurable performance improvements with minimal engineering risk.
PCT Application: PCT /US2026/018383: All claims deemed allowable with no amendments needed
CIP Application: US-20260225653-A1 “Roller Assemblies with Selectively Protruding Fins”
Related Patent Application: US-20260183957-A1 “Method for Dynamic Media Control”
Overview
Equipment processing media webs (paper, plastics & films, textiles, etc.) and conveying systems (warehouse, airport, etc.) can be subject to sheet weave and web / belt path drift from a variety of sources. If not corrected swiftly, this misalignment can be costly to a business in terms of scrap, downtime, and equipment damage.
Problem
Web path drift damages product, reduces accuracy, and increases scrap, rework, and downtime in web machines and conveyor systems.
- Misalignment in printing and coating operations
- Position fluctuations that cause conveyor wear and damage
- Sheet or film weave that cause downtime and rework
- The current best solutions feature offset pivot rollers which can be costly and hard to fit into space-constrained systems
Solution — Selectively Protruding Fins

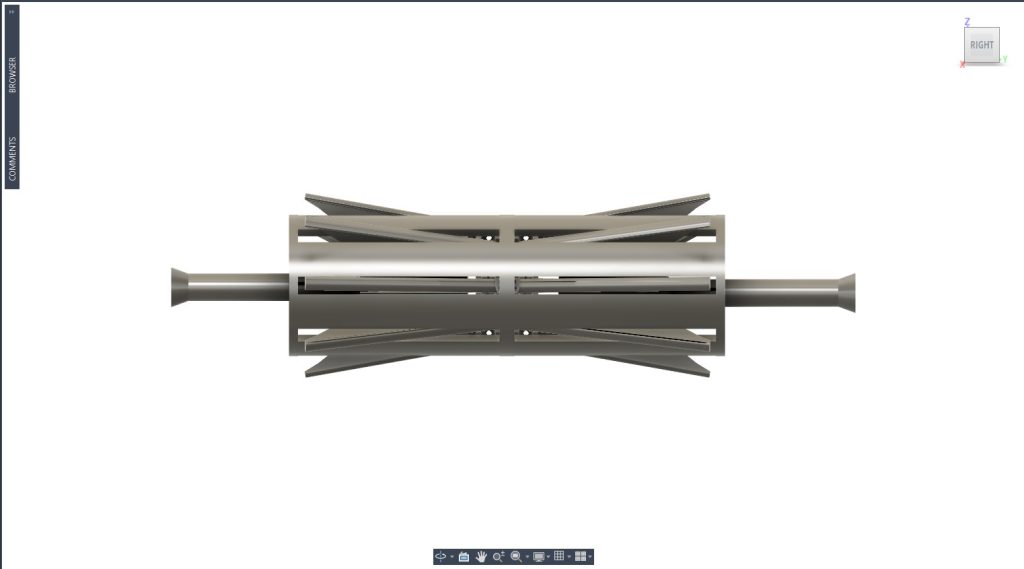

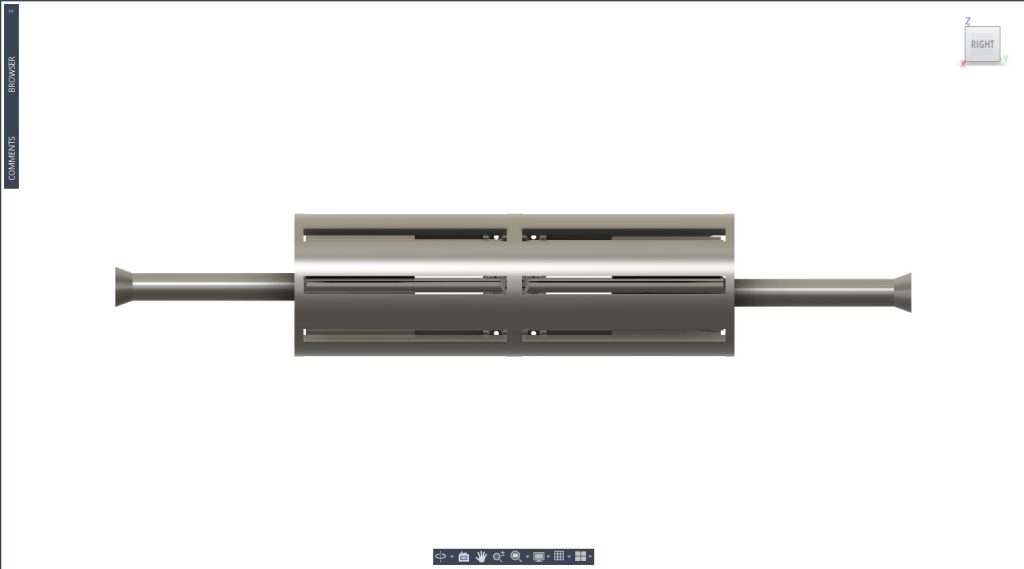

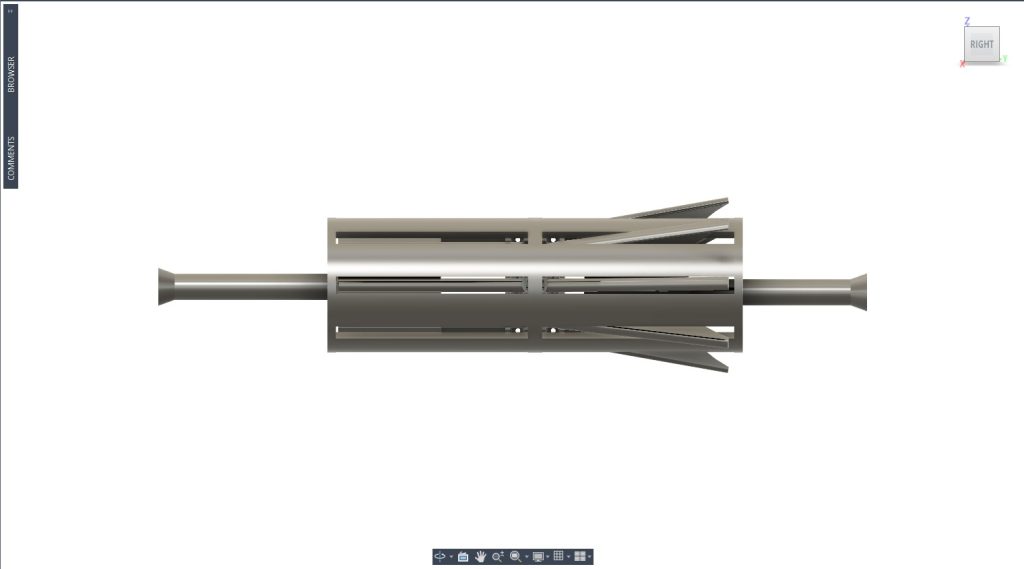

- Fins housed inside a slotted roller move between retracted and extended positions
- Actuator-controlled fins change the roller’s effective diameter on demand
- Compact, simpler mechanism compared with conventional web guides
Key Benefits
Patent Details
US 12,595,147 B2 — WEB GUIDES WITH SELECTIVELY PROTRUDING FINS
Status: Granted (US patent B2)
Scope (summary): Roller with slotted tube wall, internal control surface assembly with fins aligned to slots, and a fin actuator to selectively move fins between retracted and extended positions. A web guide system including sensors and a control unit to dynamically instruct linear actuator motion.
Technical Snapshot

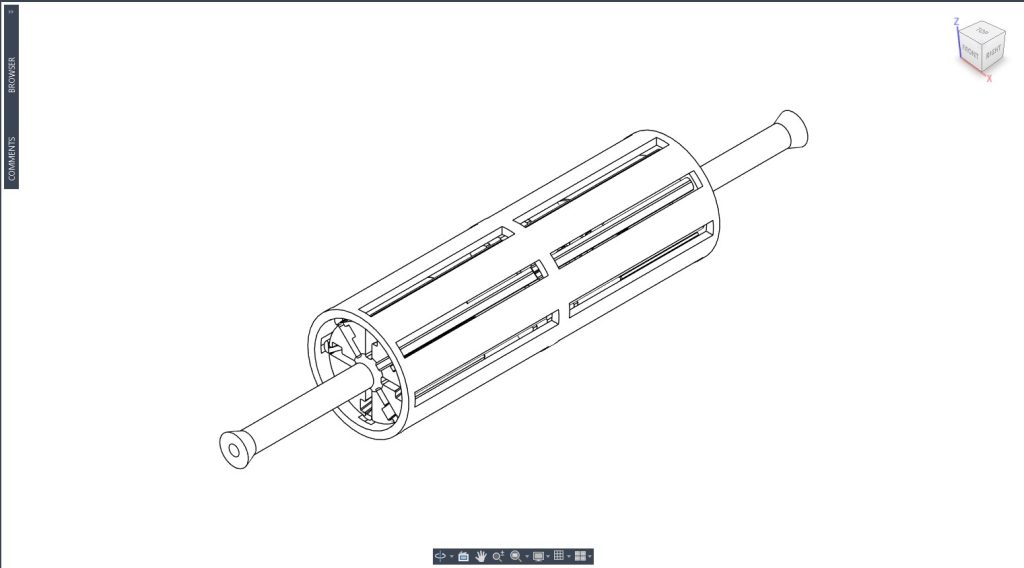

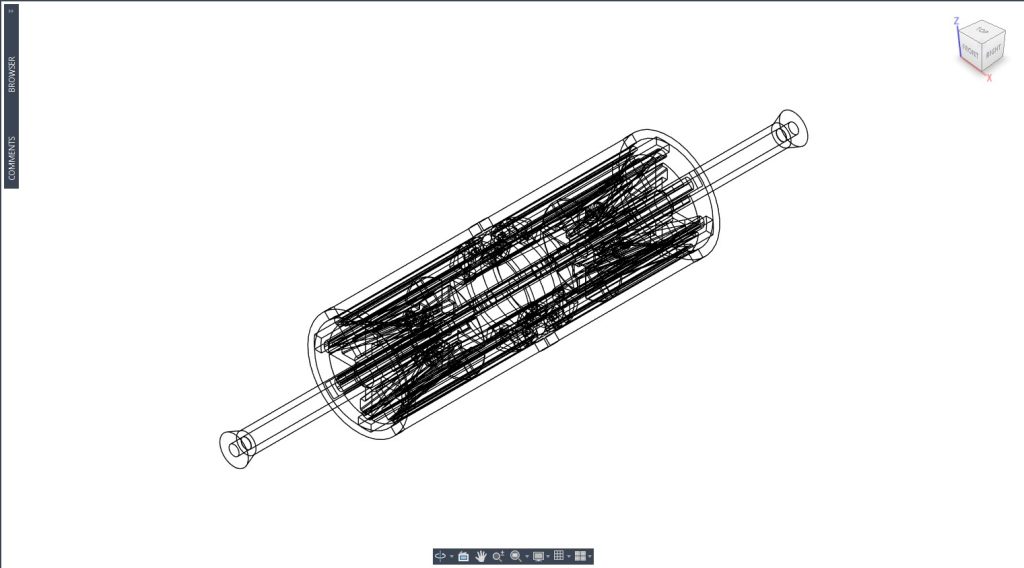

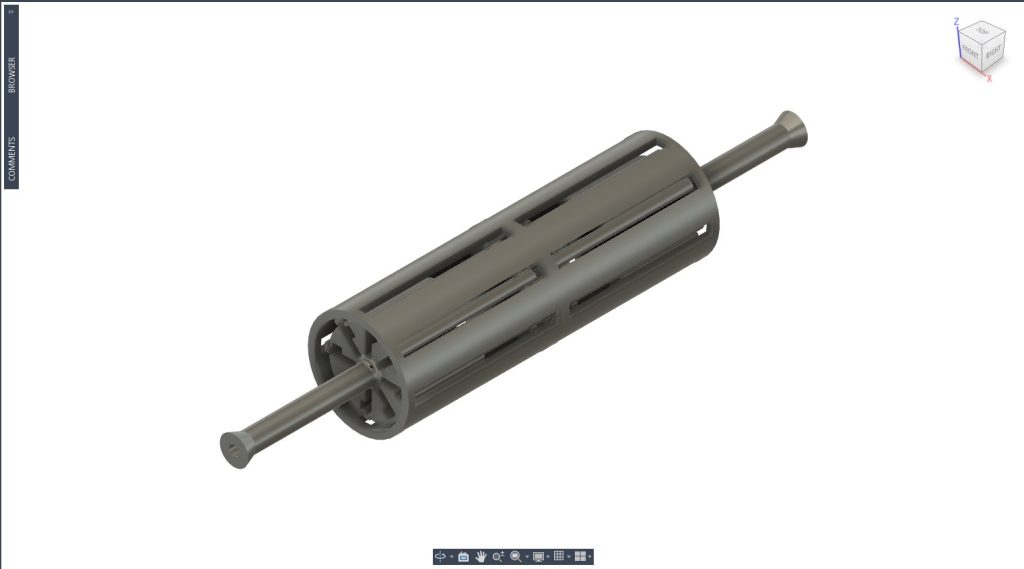

- Tube wall with circumferentially spaced slots connecting interior to exterior
- Internal control surface assembly aligns fins with slots
- Actuator capable of moving fins between retracted and extended positions
- Suited for webs: paper, PET film, battery separator film, conveyor belts, abrasive belts, treadmill loops
Use Cases / Applications
- Paper production & conversion, printing presses (improved registration)
- Conveyor and sorting systems at warehouses, airports, shipping facilities
- Manufacturing and processing lines for roofing shingles, battery separators, textiles, plastic and other films
- Treadmill and closed-loop web devices requiring controlled tracking
Contact / Inquiries
For licensing, sales, or general inquiries, please email. Provide organization, application, and any NDA status if relevant.
Email: info@rollershark.com
Please allow 2-3 business days for response
